Product Description

Cage: Brass Cage Material: Bearing Steel Origin: Shandong, China Structure: Rod End Trademark: YWS HS Code: 8482800000

Product name ball head rod
Brand name yws
Material bearing steel
Service we will serve you ASAP when we see you email and message on trademanger
Deliver time 3-30 days after orders confirmed
package As small order like sample order, we will sent by the international express, like DHL,TNT,As
large order, we always sent by sea, packing by wooden case.
loading port qingdao
payment terms L/C, T/T, western union , paypal

1 .Rod end bearings are used on the ends of cylinders,linkages,rods and shafts.To take up angular misalignment between connected parts.They attach to rods and shafts via a male stud with external threads,or a female housing with internal threads.
2.They consist of rod body,a spherically-shaped inner ring,and a cylindrical bore for shaft mounting.
3.They can be maintenance-free with PTFE liner,or housing with a lubrication hole,grease nipple.Injection nylon inside also ok.
4.Load capacity and maximum angular misalignment are the most important spec to consider.In most cases,bearings motion is symmetrical,and the maximum angular misalignment is half of the total side-to-side range.
 Specification of Rod End Bearings
Spherical Plain Bearings is dominated by a spherical inner ring and an outer ring inner sphere, can withstand a
greater load. According to their different types and structures that can withstand the radial load, axial load or
radial, axial joint load simultaneously. As the inner surface of the outer sphere inlaid composite materials, so that
the bearing in the work can produce self-lubricating.
Materials of rod end bearings
Rod end of steel and zinc coated, with female thread, Sliding surface with bronze linear;
Inner ring of carbon chromium steel, spherical surface with chromium plating; Can be
Lubricated via a nipple or a hole in the rod end. It has characteristics of large load
capability, easy mounting and dismounting and mechanism simplification.

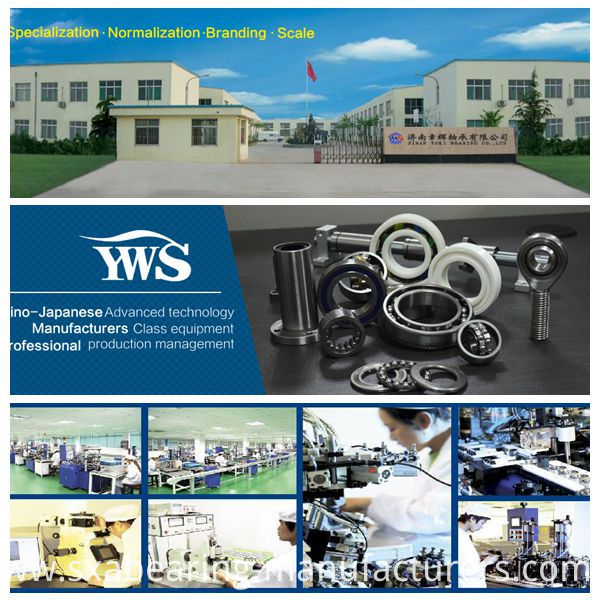

Our Factory

Connecting Rod End Joint Bearing
Connecting Rod End Joint Bearing

Contact us if you need more details on Ball Head Joint Beairng. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Connecting Sliding Bearing、Compressor and Motorcycle Connecting Rod Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
