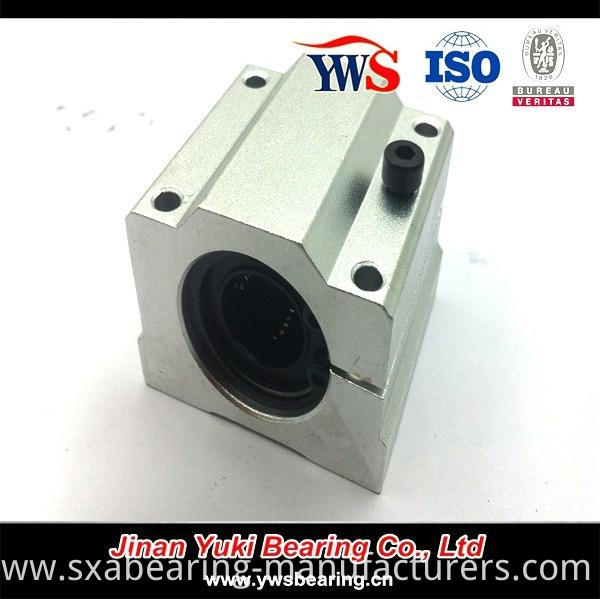

Model No.: SCJ16UU
| Low noise, low friction, high precision, high life.Because of point contact between ball and straight axis, friction small, motion precision is high.|
Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.
Linear bearings are used in conjunction with hardened linear shaft. For an infinite linear motion systems. Ball and hardened shaft because it is the point of contact, allowing the load is small, but the linear motion of the minimum friction, high precision, fast movement. Mainly used for linear motion passed.
Application : classified computer auxiliary equipment, automatic recorder, coordinate measuring instrument, multi-axis drilling machine, punching machine, tool grinding machine, cutting machine, welding machine, printing machines, packing machinery and woodworking machinery.
|tbr30luu linear bushing bearing linear slide series|
|Brand Name||YWS, according to your need|
|Clearance||C2 C0 C3 C4 C5|
|Tolerance||ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) abec9(P2)|
|Vibration||Z1V1 Z2V2 Z3V3 Z4V4|
|Material||carbon steel,stainless steel,plastic,ceramic|
|Sample Date||3-5 days|
|Delivery Detail||2-10 days after contract|
|Shipping||Express: DHL/EMS/By Sea|
|Advantage||1).Excellent and high quality control|
|4).Small order accepted|
|5).Customers' drawing or samples accepted|
|Payment Term:||A: 30% T/T In Advance, 70% T/T Against Copy Of B/L|
|B: 100% L/C At Sight|
|Packing:||Industrial package or according to buyers requirement|

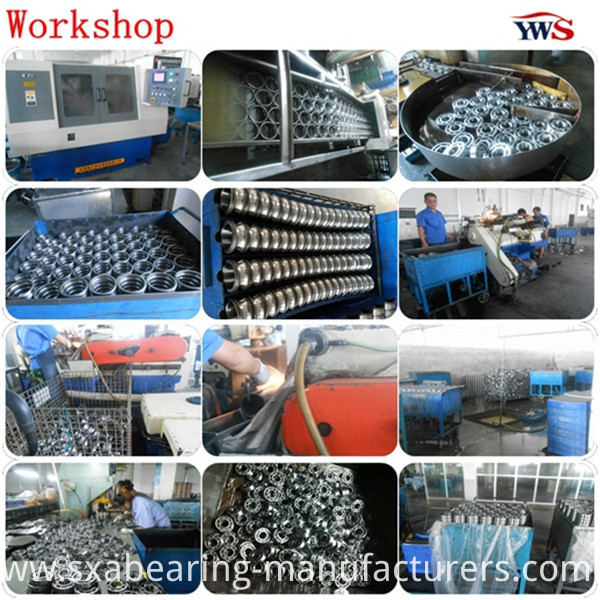

Our Factory Have the First Test Quality Control Procedures Our Office Have the Second Test Quality Control Procedure Contact us if you need more details on Linear Motion Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Linear Guildes、Linear Bearings for Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
