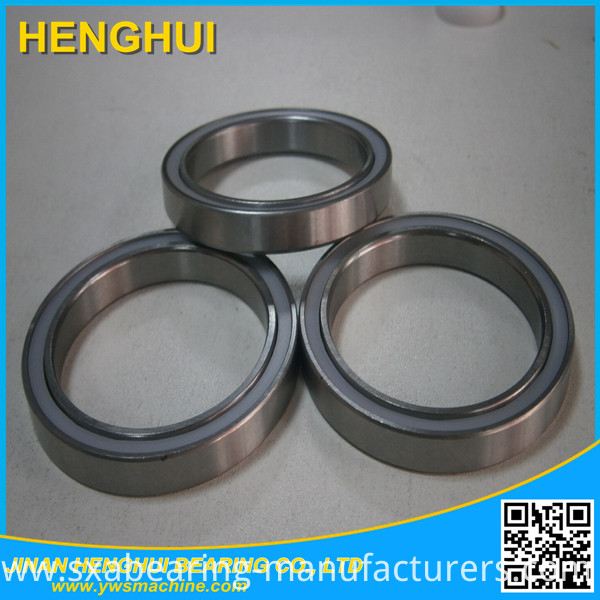

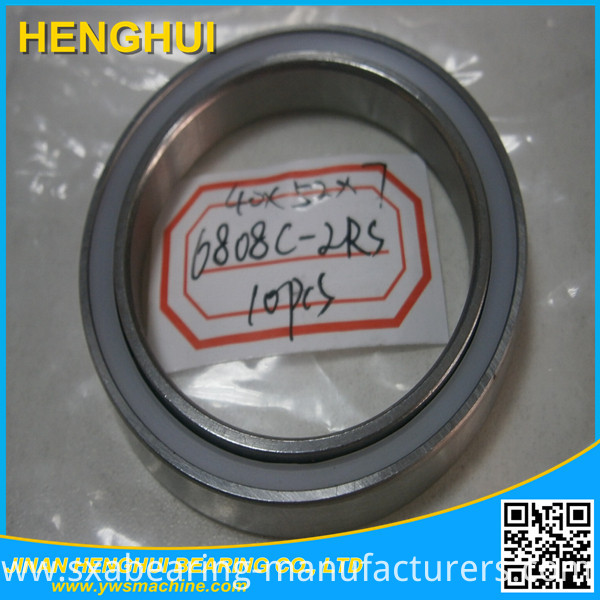

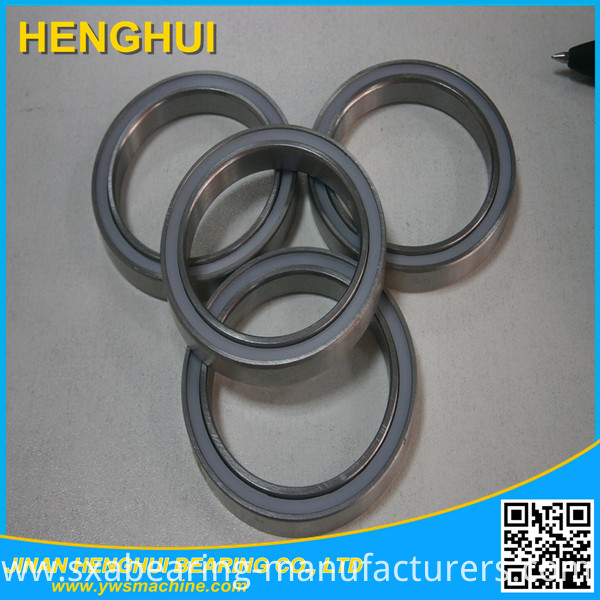

6808 2RS Zz Thin Walled Ball Bearing Hybrid Ceramic Bearing

Basic Info

Model No.:  6808

Product Description

Model NO.: 6808 Load Direction: Radial Bearing Vibration: V1 V2 V3 V4 Precision Rating: P0 P2 P4 P5 P6 The Number of Rows: Single Spherical: Non-Aligning Bearings Transport Package: Poly Bag/Yuki Color Box/5 Layer Carton/Palle HS Code: 8482102000 Separated: Unseparated Material: Bearing Steel Noise Level: Z1, Z2, Z3, Z4 Rolling Body: Ball Bearings Outer Dimension: Small and Medium-Sized (60-115mm) Trademark: YWS Origin: Shandong, China 6808 2RS Zz Thin Walled Ball Bearing Hybrid Ceramic Bearing
6808 2RS Zz Thin Walled Ball Bearing Hybrid Ceramic Bearing
6808 2RS Zz Thin Walled Ball Bearing Hybrid Ceramic Bearing

new No old No d D width Cr Cor grease oil weight
(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
6801 1000801 12 21 5 1.9 1 24000 32000 0.006
6802 1000802 15 24 5 2.1 1.3 22000 30000 0.007
6803 1000802 17 26 5 2.2 1.5 20000 28000 0.008
6804 1000804 20 32 7 3.5 2.2 18000 24000 0.018
6805 1000805 25 37 7 4.3 2.9 16000 20000 0.022
6806 1000806 30 42 7 4.55 3.4 15000 18000 0.026
6807 1000807 35 47 7 4.75 3.85 13000 19000 0.03
6808 1000808 40 52 7 4.95 4.2 12000 14000 0.033
6809 1000809 45 58 7 6.4 5.6 9000 12000 0.03
6810 1000810 50 65 7 6.6 6.1 8500 10000 0.043
6811 1000811 55 72 9 9.1 8.4 8000 9500 0.07
6812 1000812 60 78 10 9.1 8.7 7000 8500 0.093
6813 1000813 65 85 10 11.9 11.5 6700 8000 0.13
6814 1000814 70 90 10 12.1 11.9 6300 7500 0.138
6815 1000815 75 95 10 12.5 12.8 6000 7000 0.147

Item No. d B D rs cr cor weight ball no. ball size
(mm) (mm) (mm) (kn) (kn) (kg) (mm)
6200zz 10 30 9 0.6 5.1 2.39 0.032 8 4.763
6201zz 12 32 10 0.6 6.1 2.75 0.037 7 5.953
6202zz 15 35 11 0.6 7.75 3.6 0.045 8 5.953
6203zz 17 40 12 0.6 9.6 4.6 0.066 8 6.747
6204zz 20 47 14 1 12.8 6.65 0.106 8 7.938
6205zz 25 52 15 1 14 7.85 0.128 9 7.938
6206zz 30 62 16 1 19.5 11.3 0.199 9 9.525
6207zz 35 72 17 1.1 25.7 15.3 0.288 9 11.112
6208zz 40 80 18 1.1 29.1 17.8 0.366 9 12
6209zz 45 85 19 1.1 32.5 20.4 0.398 10 12
6210zz 50 90 20 1.1 35 23.2 0.454 10 12.7
    our factory
Jinan Yuki Bearing Co., Ltd. is a professional Deep Groove Ball Bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc 6808 2RS Zz Thin Walled Ball Bearing Hybrid Ceramic Bearing
6808 2RS Zz Thin Walled Ball Bearing Hybrid Ceramic Bearing

Contact us if you need more details on Good Quality Micro Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Miniature Bearing Rolling Bearing、Thin Walled Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
