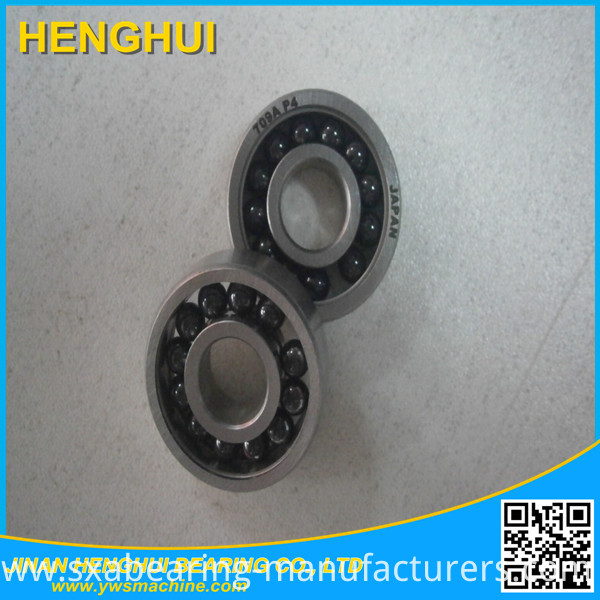

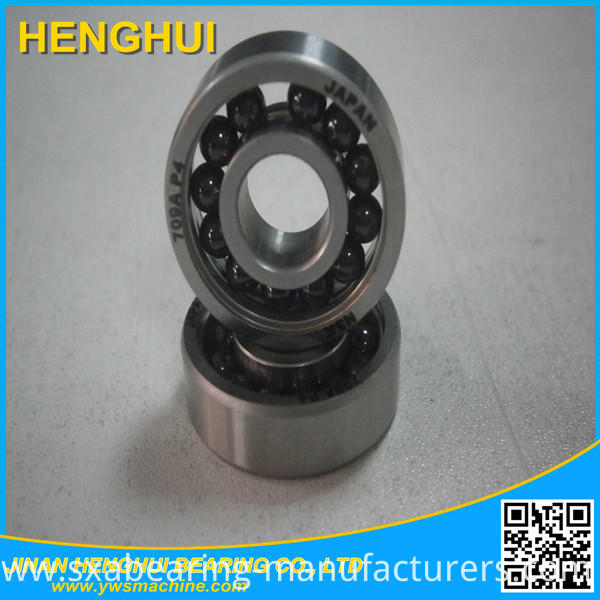

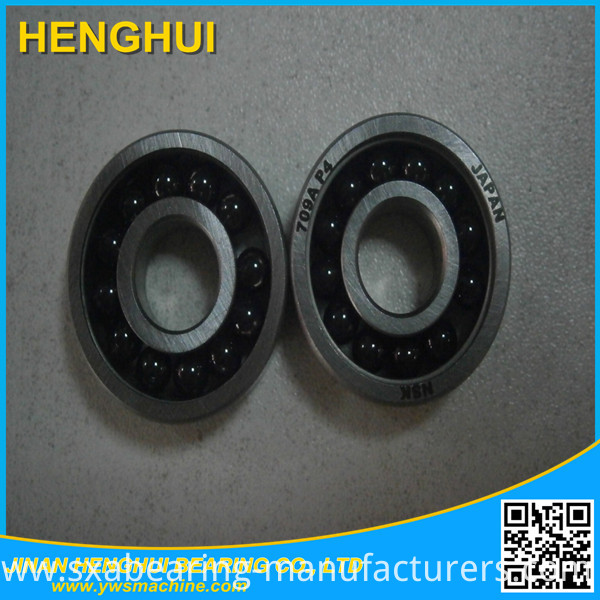

709A Angular Contact Ball Bearing

Basic Info

Model No.:  709A

Product Description

Model NO.: 709A Load Direction: Radial Bearing Precision Rating: P0.P6.P5.P4.P2 Seals Type: Open.2RS.Zz Rolling Body: Ball Bearings Outer Dimension: Small (28-55mm) Trademark: YWS Origin: Shandong, China Separated: Unseparated Material: Chrome Steel Ring, Ceramic Ball Vibration: Z1V1 Z2V2 Z3V3 Z4V4 Certification: ISO9001:2008;BV The Number of Rows: Single Spherical: Non-Aligning Bearings Transport Package: White Plastic Bag / Outer Carton / Pallet HS Code: 8482102000 709A Angular Contact Ball Bearing

709A Angular Contact Ball Bearing

709A Angular Contact Ball Bearing

yuki beairng features ISO9001:2008 quality management system Precision: ABEC-1(P0), ABEC-3(P6), ABEC-5(P5), ABEC-7(P4) Noise level: Z1, Z2, Z3, Z4 Vibration Level: V1, V2, V3, V4 Clearance: C2, C3, C4, C5 Hardness: 59-63 HRC Low friction, long service life Welcome OEM order    ball bearing description
Products name Ball Bearing,Deep Groove Ball Bearing
Brand name YWS or OEM japanese germany brand bearings  Brands
ID size Standard and non-standard sizes available
Material Carbon Steel / Chrome Steel
Closures Open, metal Sealed, rubber sealed, Nylon sealed
Types Open,Z,ZZ,RS,2RS,RZ,2RZ.
For non standard bearing,there are many different types with various sizes for our clients
 and we can alsodesign or develop customized products as per the samples or drawings
provided by our clients.
Delivery date 2-15days
Payment terms A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
About us Established in 2004, Jinan yuki bearing Co.,Ltd.is a sino-japanese joint ventured company
and one of the leading bearing manufacturers in China.With 20 years' experience, advanced
manufacturing facilities and excellent management staff, we can produce products that are
equivalent to the world leading brand bearings. We have our own bearing brand YWS and
also distribute bearings of global brands,
Package A.Polybag +Box+Carton
C.As per customer's request
6800 Series Miniature Deep Groove Ball Bearing
N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
685 5 11 3 0.15 0.715 0.282 35000 45000 0.0011
686 6 13 3.5 0.15 1.08 0.44 33000 42000 0.0019
687 7 14 3.5 0.15 1.17 0.505 31000 40000 0.0021
688 8 16 4 0.2 1.61 0.715 29000 38000 0.0031
689 9 17 4 0.2 1.72 0.82 28000 36000 0.0032
6800 10 19 5 0.3 1.83 0.925 26000 34000 0.005
6801 12 21 5 0.3 1.92 1.04 22000 30000 0.006
6802 15 24 5 0.3 2.08 1.26 20000 28000 0.007
6803 17 26 5 0.3 2.23 1.46 19000 26000 0.008
6804 20 32 7 0.3 4 2.47 17000 22000 0.019
6805 25 37 7 0.3 4.3 2.95 15000 19000 0.022
6806 30 42 7 0.3 4.7 3.65 13000 17000 0.026
6807 35 47 7 0.3 4.9 4.05 11000 15000 0.029

delivery type
1. Ocean Shipping: negotiation
2. EMS/Fedex/DHL/TNT Express: around 5-10 working days to arrive
3. International Air Mail: around 2-4 weeks to arrive

Our strongest point is that we consult. So anything you want to know about Bearings, please ask us!!   our factory
Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, Ceramic Bearing and so on. We could also provide OEM service according to our customers' requirements. 709A Angular Contact Ball Bearing
packing 709A Angular Contact Ball Bearing

Contact us if you need more details on Deep Groove Ball Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ball Bearing、Rolling Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
